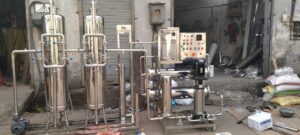

Setup Of Turnkey Project Mineral Water Filling Plant  Reverse Osmosis System 4000 LPH

PRELIMINARY RAW WATER PARAMETERS

ANTI SCALENT DOSING  (Metering Pump)

To inject Anti Scalent Solution into feed water to avoid scale formation on the membrane.

Qty                                        : 1No.

Tank capacity                   : 60 Litre

Tank MOC                          : HDPE Chemical Tank

Pump                                   : Electronic Diaphragm Metering Pump 0 to 5Lph

Make                                     : E-Dose/ Milton Roy Asia LMI

Solution                               : Anti Scalent Solution

 MICRON CARTRIDGE FILTER

To remove micron sediment particles from raw water prior to Reverse Osmosis system to avoid clogging of membrane.

QTY                                       : 1No.

Make                                      : Centaac

Shell MOC                           : SS 316

Cartridge Size                   : 20” X 4”

Porosity                              : 5 Micron

Cartridge MOC  : Pleated Polypropylene

REVERSE OSMOSIS MODULE

To purify and remove 98% of all known contaminants.

HIGH PRESSURE PUMP

QTY                                       : 1 No.

Make                                     :  CNP

Capacity                              : 10M³/Hr.

Head                                     : 100 M

MOC                                      : SS 304

RO MEMBRANE

Membrane Size                : 8” X 40” .

Make                                     : Hydranautics or equivalent high performance

No. of Membrane            : 4 Nos.

PRESSURE TUBE (HOUSING)

Make                                     : Centaac

Pressure Vessel MOC     : SS 316

Pressure Tube                  : 2 Element Long 2No.

Inter Pipings                     : SS 316

Skid                                       : SS 304

LP /HP cut off Switch   : Provided 1No. Each

Flow Indicators               : Provided for Reject and Product Water

Piping’s and connector : SS 316

   SS STORAGE TANK FOR TREATED WATER

To store Reverse Osmosis permeate (product) water.

QTY                                       : 1 No.

MOC of Tank                     : SS 304

Type                                     : Corrugated

Capacity                              : 2000 Ltr. Holding capacity.

        SS BOOSTER PUMP

To feed water to down stream to micron filters and UV system and filling line

QTY                                        : 1No.

MOC of Impeller               : SS 316

Make                                      : CNP or equivalent

Rating                                   : 4.0M³/Hr @ 30M

Head                                     : 30M

   MICRON CARTRIDGE FILTER

To remove micron particles up to 0.2 Micron sizes.

QTY                                       : 1No.

Make                                      : Centaac

Shell MOC                           : SS 316

Cartridge Size                   : 20”

Porosity                              : 0.2 Micron

Cartridge MOC                 : Pleated Polypropylene

Operating Flow Rate       : 4M³/Hr.

 Part 10:             ULTRA VIOLET MODULE

For removal of micro biological organisms upto 99.9%

QTY                                       :  1Unit.

Make                                     : Alfa

MOC                                      : SS 316 housing

UV Lamp Intensity         : 30000 µw sec / Cm²

Make of Lamp                  : Alfa

          OZONATION Unit with Re pressurization Pump

To re pressurize the product water after storage and also to generate, mix and inject ozone gas online into product feed water to filling lines.

Make                                     : Centaac

MOC                                      : SS

Technology                       : Corona discharge ozonation unit

Accessories                        : Re pressurization pump, water sensor safety unit, ventury injector, heater for removing moisture from silica quartz used to remove moisture from air.

Generation                         : 10 gm/Hr.
