pouch filling and sealing machine for supermarket
Astra- 60, Powder and Grains

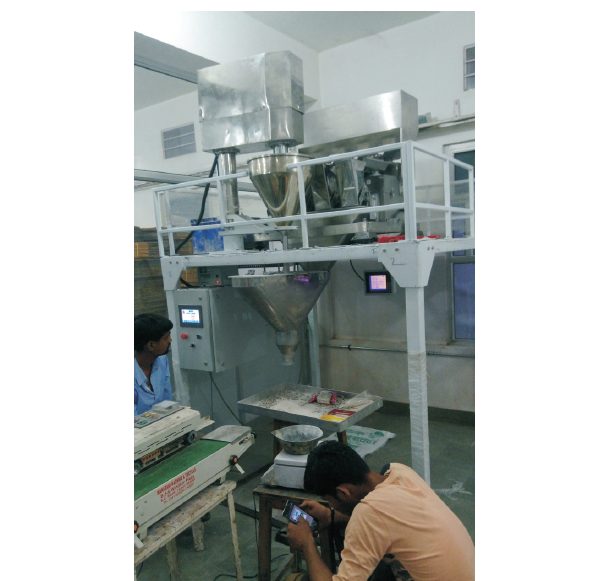

Sami Automatic Volumatric Auger Filler with Linear Weigher Machine
Applicable Range/
1. This machine can be suitable for all kinds of industries like food;medicine;cosmetic;industrial products sankes
2. The products packed is,sanckes ,sugar,edible salt,pepper,coffee;washing powder,beans Drying agents and medicinal Banana chips, potato chips, products…
Machine speed – 12 to 40 per mint
Net Weight – 400KG Gross weight :450kg
Voltage – AC420V Three -phase
Total Power – 4.KW
Measuring Range – 5gms to 100gms, 50gms to 500gms
PLC – Schneider
Measuring Mode – Volumetric Auger Filler
Color Touch Screen – With Full color touch screen, which makes it very easy and
convenient operation Schneider
Machine Material – Mild Steel
Motor – Bonfigliol
Solid-State Relay – Unison
Intermediate Relay – India
Buttons – Schneider
Sensor – Pepper + Fuchs
Servo Volumetric Auger filler – powder
The principle of auger filler is to dose the product by auger screw. Auger screw speed & rotation is controlled precisely by servo motor. Auger filler is used mainly for sticky powders like milk powders, flours, ground spices, coffee powders, pesticides, etc.
Auger filler system includes a hopper containing product to be packed. The product level is maintained using inclined or horizontal screw conveyor. There is an agitator, which churns
the material & helps to break lumps. The pitch of auger screw is filled with the material, when it rotates & the same is discharged to the bottom of the bag to be formed.
Features
” Servo Driven for high efficiency & accuracy. Precise & accurate dosing.
” Integrated with bagger through network. Works in synchronization with bagger speed.
” Can work with close loop system, if attached with check weigher as an option.
” Rugged construction ensuring consistent high dosing accuracy.
” All contact parts made out from stainless steel 304.
” Fast & easy cleaning agitator hopper design.
Products Name: Four Head Linear Weiher filler
Features Specifications: ,
This machine is our latest design, It is professionally used to granular, crystalloid, e.g. chicken essence, monosodium glutamate, coffee,sugadextrose and anything fluidity materials., It breaks the low-speed, and sinuous-operating of the traditional vibrating machine.
Speed per Mint 15 Up to 25
Filling Rage- 30gms to 1000gms ,
Accuracy – 1.5Gms -+
Note: Actual output will depends on film quality & properties. reserve the right to prove above offered outputs on suitable film at their works. Buyer to provide their film rolls in sufficient quantity to check its working at above speeds of machine. The set performance, however, is subject to the following factors:
